AIRTECH STUDIO HOP-UP TDC CONVERSION KIT FOR ARES AMOEB WITH ROTARY CHAMBER

Description of the AIRTECH CONVERSION KIT ARES:

This kit can be used with all types of balls and is also perfectly suited to R-Hop and Flat-hop configurations thanks to a carriage system that applies the hop perfectly downward for more uniform pressure on the ball. The result: increased accuracy over long distances.

Why TDC (Top-Down-Center)?

Using a Top-Down-Center is a highly sought-after feature in airsoft, as it maximizes friction on a BB, and third-party chambers help achieve this. However, switching to a third-party chamber can come with risks such as double BB feeding, misfeeds, and uneven air compression. That's why we opted for an upgrade option for the stock hop-up chamber, specifically designed for Ares Amoeba models.

M-Nub

We tested the performance of many types of M-nubs for their firmness, durability, and ability to retain their shape under intense pressure. We settled on a version that meets all of these criteria. Two M-pimples are included, spanning the entire length of the hop-up window to maximize exposure to bucking and then the ball. This ensures a more stable hop-up as the ball accelerates through the mound/arch.

Modifications to the outer barrel

Please note that this kit requires modification to the outer barrel of your airsoft replica. However, installation is simple and cost-effective! The integration kit is designed for the Ares Amoeba plastic hop-up. Slight modification/sanding is required.

Main benefits after installation

Increased shooting distance, accuracy and consistency. Micro-adjustments for perfect hop-up adjustment. Using the original chamber ensures optimal ball feeding, consistent FPS and avoids double feeding. Usable on all hop-up types, including standard bucking, R-HOP, Flat-hop, and advanced R-Hop hop-ups, such as the Maple Leaf Macaron. The complete step-by-step installation can be downloaded here. Hop-up not included.

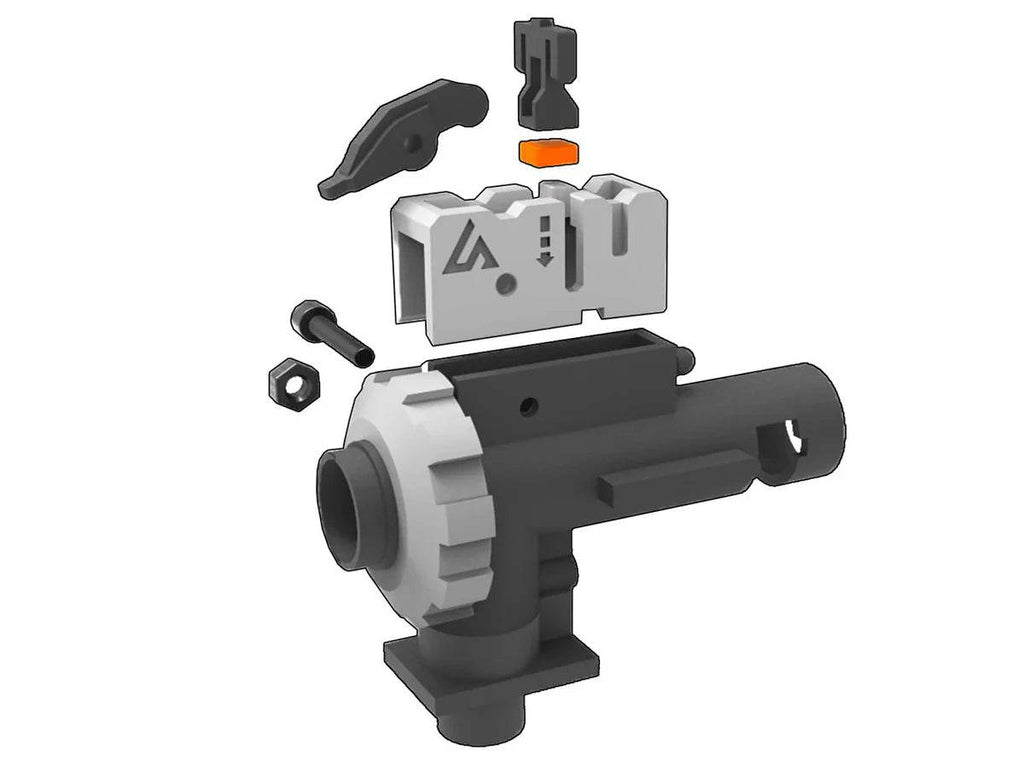

Package contents for AIRTECH CONVERSION ARES:

• 1 x TDC Support
• 1 x TDC Cart
• 2 x M-Nub
• 1 x Hop Up Arm
• 1 x M2 Bolt
• 1 x M2 Nut
