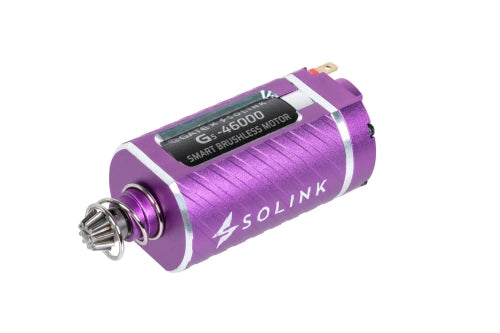

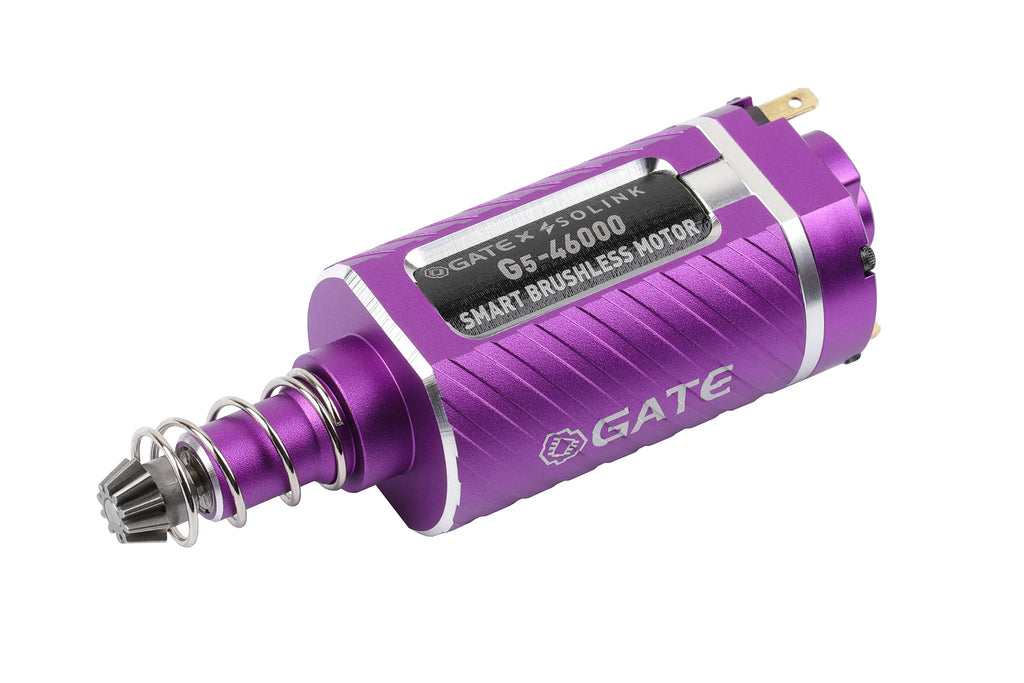

GATE G5 SMART BRUSHLESS MOTOR VER. LONG / SHORT

GATE – G5 PROGRAMMABLE BRUSHLESS MOTOR VIA GCS

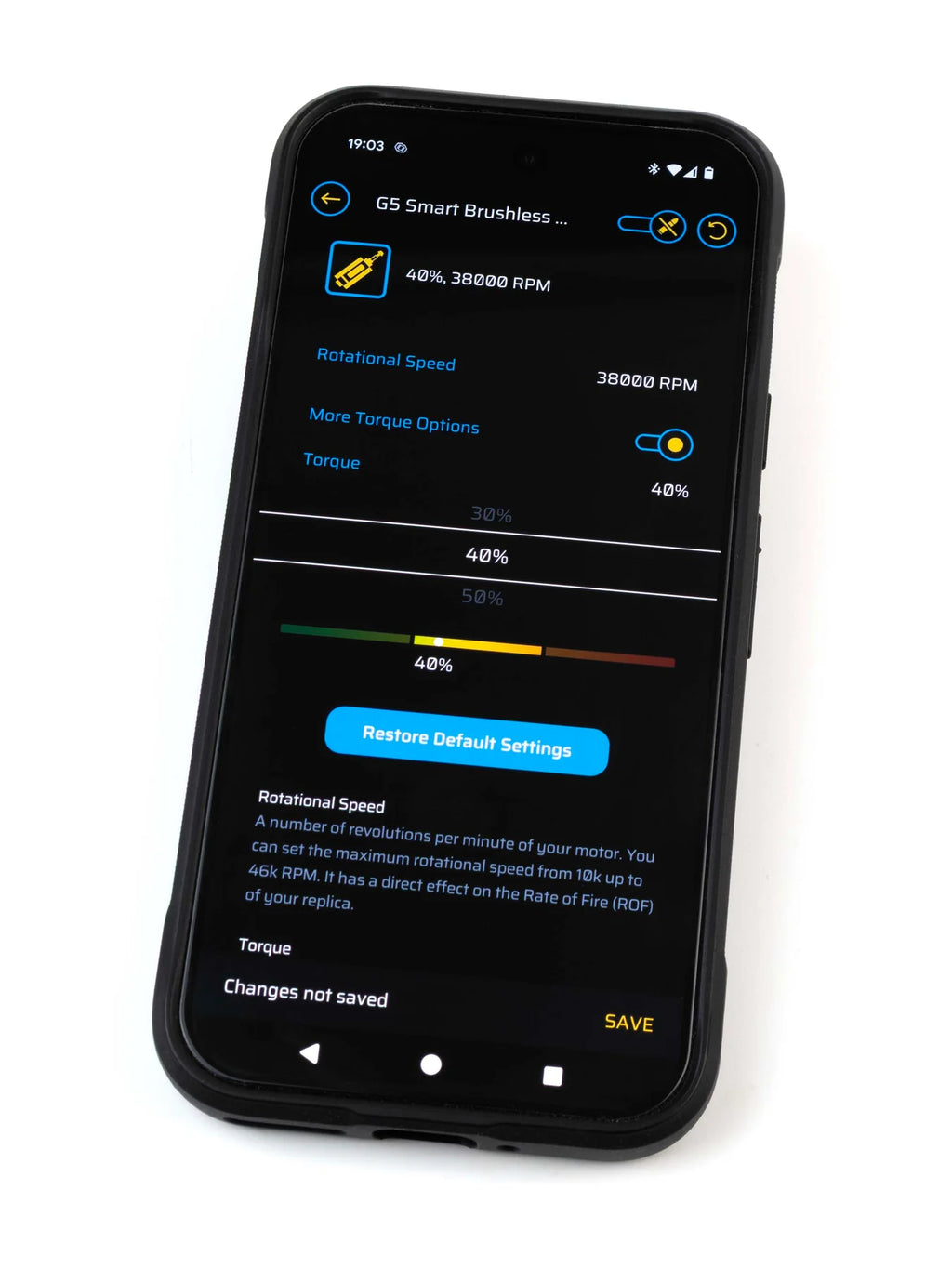

Discover the G5 Smart Brushless Motor , the world's first brushless motor that can be programmed directly via the GCS mobile app, exclusively with GATE TITAN II or ASTER II Bluetooth® systems. With the GCS app, adjust the rotation speed from 10,000 to 46,000 RPM in real time, even during a game, without the need for an additional programmer!

The G5 delivers exceptional torque of up to 2334 g-cm, ideal for the most demanding configurations, with instant detent response and maximum efficiency to reduce battery consumption and motor temperature. Its Soft Start function extends gear life, while Fast Start ensures ultra-fast response. The integrated anti-reverse mechanism eliminates the need for standard latch, making operation quieter and pre-cocking more precise.

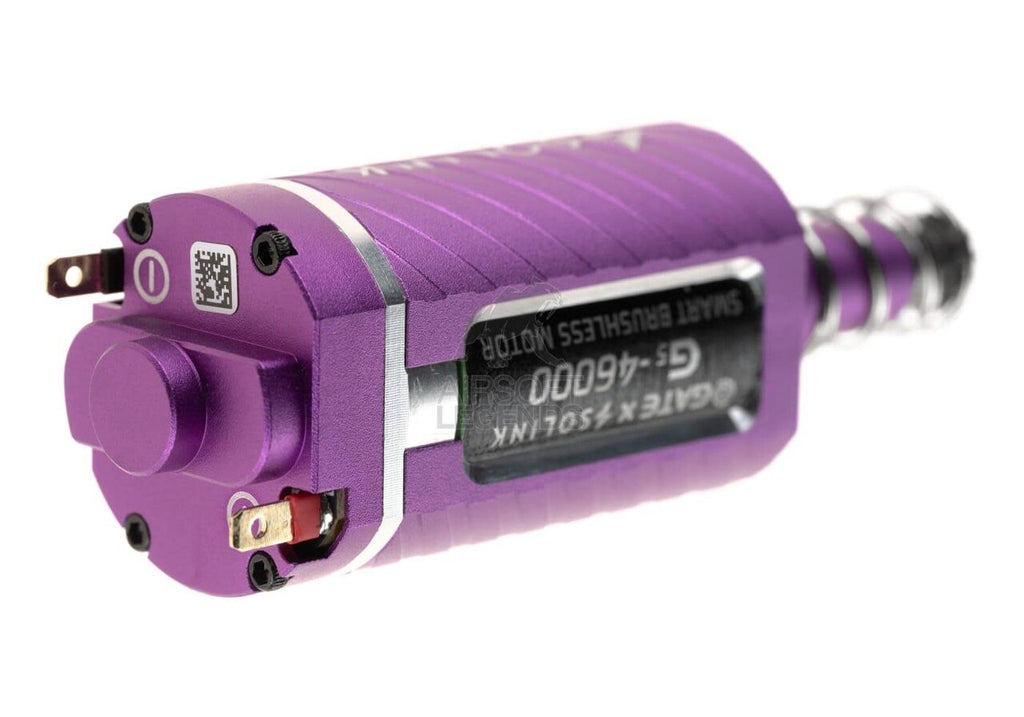

Thanks to its advanced design with reinforced connectors, CNC-machined shaft, and efficient braking, this motor guarantees reliability and performance. The G5 integrates seamlessly into the GATE ecosystem, communicating with TITAN II and ASTER II Bluetooth® for total synergy and optimal control.

Main features:

First brushless motor programmable via GCS

Adjustable speed: 10,000 – 46,000 RPM

Max torque: 2334 g-cm

Configurable Soft Start and Fast Start

Built-in anti-reverse for quieter operation

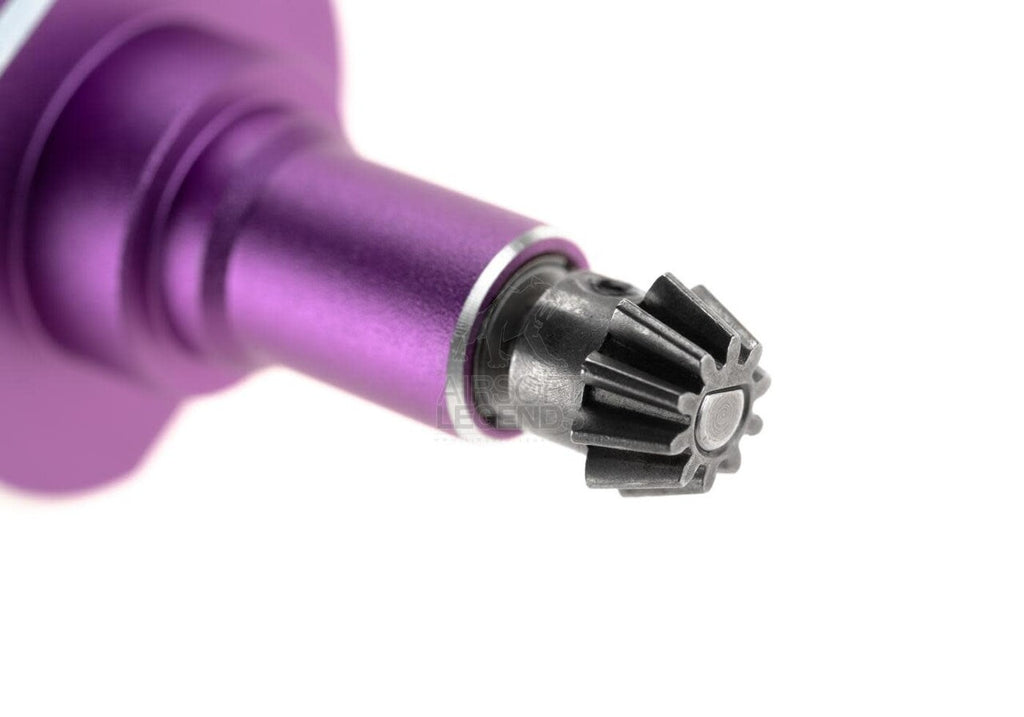

D-type pinion gear and high mechanical strength

Optimized consumption for less wear and longer life

Technical specifications:

Dimensions: 88.5 x 29.5 x 25 mm | Weight: 141g

Supply voltage: 6 – 16.8 V

No-load: 45,800 RPM / 3.2 A

Max efficiency: 75.9% | 40,987 RPM / 500 g-cm / 24.9 A / 205 W

Max power: 519 W | 22,950 RPM / 2334 g-cm / 105 A

Manufacturer: GATE

Why choose a brushless motor for your AEG?

Brushless motors offer higher efficiency, higher torque and longer life due to the absence of brushes, reducing mechanical wear and electromagnetic interference.

You also benefit from better reliability, less noise and virtually zero maintenance.
